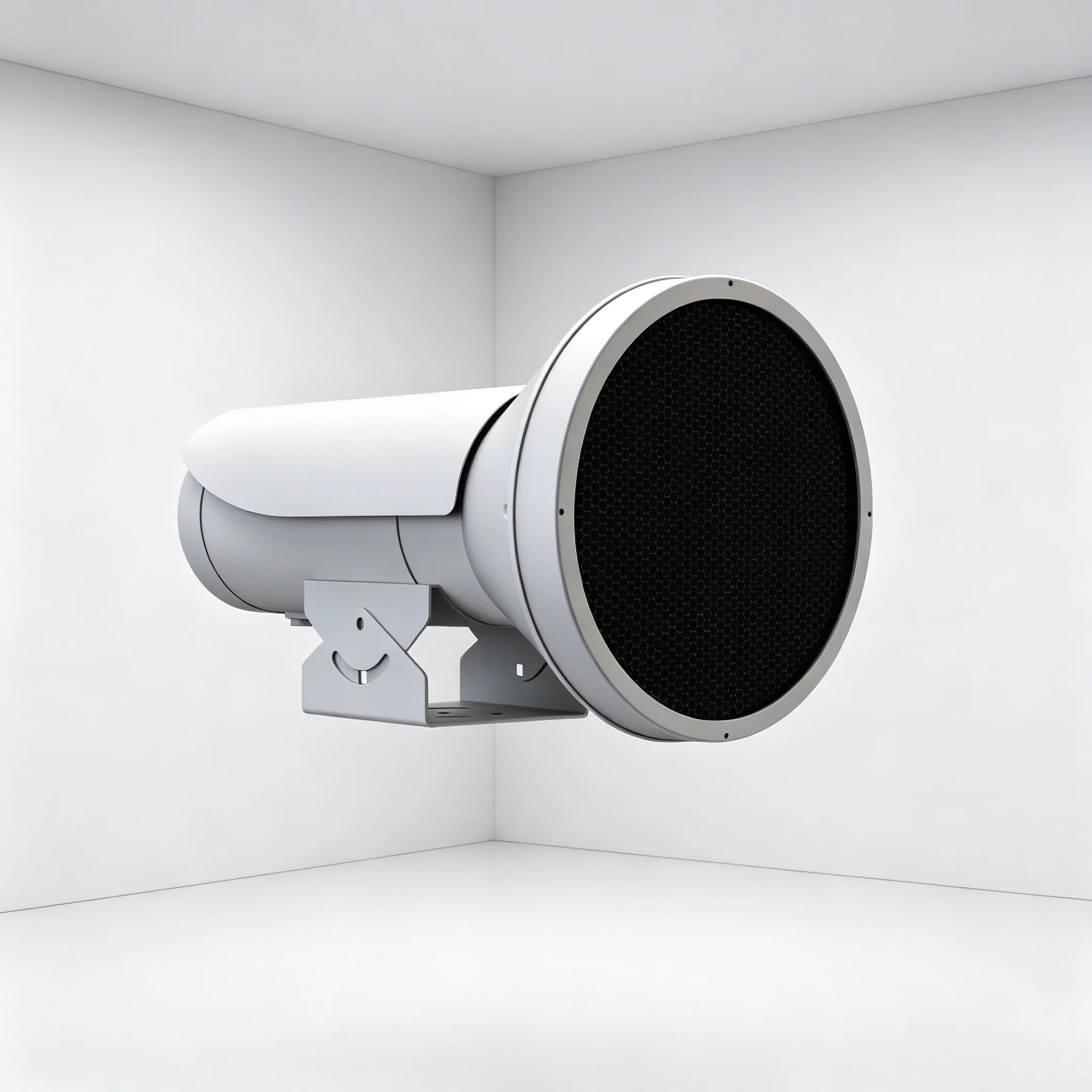

HIK SL-1211-3 IR Flash Supplement Light CN Version
IR Flash Supplement Light
- Short recycling time, suitable for over-speed capture;
- With photosensitivity, it supports two levels of brightness during day and night, and the brightness value can be adjusted through RS485;
- Novel design, with manual universal joints, easy to adjust;
- Built-in grating (external grating optional), effectively reducing light pollution
Product Data
- Supplement Light
- Light TypeIR light
- IR Wavelength≥850nm
- Angle of Light10°
- Effective Distance16 to 25 m
- Response Time≤ 67 ms
- Trigger MannerTTL level (switch trigger optional)
- Trigger Level5 to 12 V (High level trigger)
- Trigger Frequency0.5 Hz
- Flash Energy200 J
- Service Life≥ 20 million Times
- Coverage1 lane(s)
- Interface
- Flash Trigger Input1 Flash trigger input
- RS-4851 RS-485
- Function
- Day and Night FunctionSupports ambient brightness detection and auto startup at low illumination (optional)
- Brightness Control0 to 100 levels of brightness
- Remote ControlSupport
- General
-
Power
AC 100 V to 240 V, 3.5 A, 60 W, two-core terminal block
- MaterialAluminium alloy
- Dimensions469 mm × 269.5 mm × 270.76 mm (18.46" × 10.61" × 10.66") (L × W × H)
- Package Dimensions536 mm × 345 mm × 355 mm (21.10" × 13.58" × 13.98") (L × W × H)
- WeightApprox. 5.2 kg (11.53 lb.)
- With Package WeightApprox. 6.6 kg (14.48 lb.)
- Operating Condition-25 °C to 70 °C (-13 °F to 158 °F). Humidity 95% or less (non-condensing)
- Storage Condition-25 °C to 70 °C (-13 °F to 158 °F). Humidity 95% or less (Non-condensing)
- Approval
- EMCEN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021
-
Safety
CB: IEC 60598-1:2020, IEC 60598-2-5:2015, IEC 62031:2018, IEC TR 62778:2014,
CE-LVD: EN 60598-1, EN 60598-2-5, EN 62031
-
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
-
Protection
IP65: IEC 60529: 1989+A1: 1999+A2: 2013
$87.50
Original: $250.00
-65%HIK SL-1211-3 IR Flash Supplement Light CN Version—
$250.00
$87.50Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
IR Flash Supplement Light
- Short recycling time, suitable for over-speed capture;
- With photosensitivity, it supports two levels of brightness during day and night, and the brightness value can be adjusted through RS485;
- Novel design, with manual universal joints, easy to adjust;
- Built-in grating (external grating optional), effectively reducing light pollution
Product Data
- Supplement Light
- Light TypeIR light
- IR Wavelength≥850nm
- Angle of Light10°
- Effective Distance16 to 25 m
- Response Time≤ 67 ms
- Trigger MannerTTL level (switch trigger optional)
- Trigger Level5 to 12 V (High level trigger)
- Trigger Frequency0.5 Hz
- Flash Energy200 J
- Service Life≥ 20 million Times
- Coverage1 lane(s)
- Interface
- Flash Trigger Input1 Flash trigger input
- RS-4851 RS-485
- Function
- Day and Night FunctionSupports ambient brightness detection and auto startup at low illumination (optional)
- Brightness Control0 to 100 levels of brightness
- Remote ControlSupport
- General
-
Power
AC 100 V to 240 V, 3.5 A, 60 W, two-core terminal block
- MaterialAluminium alloy
- Dimensions469 mm × 269.5 mm × 270.76 mm (18.46" × 10.61" × 10.66") (L × W × H)
- Package Dimensions536 mm × 345 mm × 355 mm (21.10" × 13.58" × 13.98") (L × W × H)
- WeightApprox. 5.2 kg (11.53 lb.)
- With Package WeightApprox. 6.6 kg (14.48 lb.)
- Operating Condition-25 °C to 70 °C (-13 °F to 158 °F). Humidity 95% or less (non-condensing)
- Storage Condition-25 °C to 70 °C (-13 °F to 158 °F). Humidity 95% or less (Non-condensing)
- Approval
- EMCEN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021
-
Safety
CB: IEC 60598-1:2020, IEC 60598-2-5:2015, IEC 62031:2018, IEC TR 62778:2014,
CE-LVD: EN 60598-1, EN 60598-2-5, EN 62031
-
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
-
Protection
IP65: IEC 60529: 1989+A1: 1999+A2: 2013
