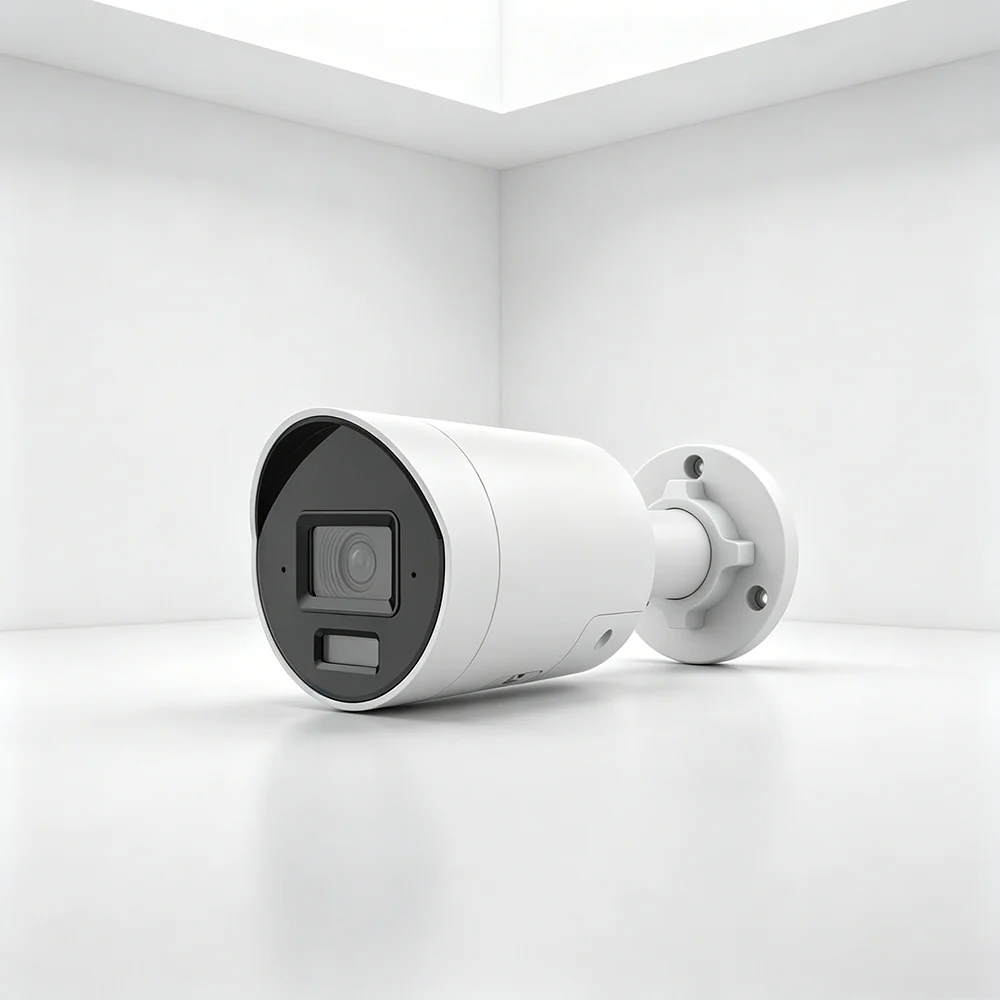

HIK DS-2CD20123G2-LIUY/S(L)(RB) 12MP AcuSense Smart Hybrid Light Bullet Network Camera
HIK DS-2CD20123G2-LIUY/S(L)(RB) 12MP AcuSense Smart Hybrid Light Bullet Network Camera
HIK DS-2CD20123G2-LIUY/S(L)(RB) is a 12MP AcuSense Smart Hybrid Light Bullet Network Camera for professional security projects, retail installations, and B2B deployment.
Key Highlights
- UHD: Ultra High Definition delivers lifelike immersion
- Active strobe light and audio alarm (/SL: white light, /SRB: red & blue light)
- Smart Hybrid Light: Integrates IR and white lights, 3 supplemental lighting modes
- Person and vehicle classification based on deep learning
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Water and dust resistant (IP67)
- Anti-corrosion design, providing reliability and longevity compared to standard (NEMA 4X)
Download Datasheet
Specification
Camera
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 4608 × 2592 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with light |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
Lens
| Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
| Focal Length & FOV |
2.8 mm: horizontal FOV 94.2°, vertical FOV 51.1°, diagonal FOV 110.2°
4 mm: horizontal FOV 73.1°, vertical FOV 40.2°, diagonal FOV 84.8°
6 mm: horizontal FOV 47°, vertical FOV 25.6°, diagonal FOV 54.6°
|
| Lens Mount | M16 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Depth of Field |
2.8 mm: 2.9 m to ∞
4 mm: 3.5 m to ∞
6 mm: 8.3 m to ∞
|
DORI
| DORI |
2.8 mm: Detect: 117 m, Observe: 46 m, Recognize: 23 m, Identify: 11 m
4 mm: Detect: 148 m, Observe: 59 m, Recognize: 29 m, Identify: 14 m
6 mm: Detect: 236 m, Observe: 93 m, Recognize: 47 m, Identify: 23 m
|
Illuminator
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 40 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video
| Main Stream |
50Hz:
• 20 fps (4608 × 2592)
• 25 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720)
60Hz:
• 20 fps (4608 × 2592)
• 30 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720)
|
| Sub-Stream |
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
|
| Third Stream |
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
|
| Video Compression |
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
|
| Video Bit Rate | 32 Kbps to 20 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Bit Rate Control | CBR, VBR |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Target Cropping | Yes |
Audio
| Audio Type | -U: Mono sound |
| Audio Compression | -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | -U: 8 kHz/16 kHz/32 kHz/48 kHz |
| Environment Noise Filtering | -U: Yes |
Network
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) |
| User/Host |
Up to 32 users
3 user levels: administrator, operator, and user
|
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| Web Browser |
Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+
Local service: Chrome 80+, Firefox 80+, Edge 89+
|
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR, Distortion Correction, Defog |
| Privacy Mask | 4 programmable polygon privacy masks |
Interface
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Reset Key | Yes |
| Built-in Speaker | 1 built-in speaker, Max. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB. |
| Audio | Built-in Microphone: Single-microphone |
Event
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Smart Event | Scene change detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email |
Deep Learning Function
| Face Capture | Yes |
| Perimeter Protection |
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
|
General
| Power |
12 VDC ± 25%, 1.3 A, max. 15.6 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: IEEE 802.3at, Class 4, max. 19 W
|
| Material | Metal |
| Dimension | Ø74.4 mm × 176.3 mm (Ø2.93" × 6.94") |
| Package Dimension | 234 mm × 120 mm × 117 mm (9.21" × 4.72" × 4.61") |
| Weight | Approx. 515 g (1.1 lb.) |
| With Package Weight | Approx. 760 g (1.7 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding |
| Flashing Light |
SRB models: Red and Blue Light
/SL model: White Light
|
Approval
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 |
| Safety |
CB: IEC 62368-1: 2014+A11
CE-LVD: EN 62368-1: 2014/A11: 2017
|
| Environment |
CE-RoHS: 2011/65/EU
WEEE: 2012/19/EU
Reach: Regulation (EC) No 1907/2006
|
| Protection | IP67: IEC 60529-2013 |
| Anti-Corrosion Protection | NEMA 4X (NEMA 250-2018) |
