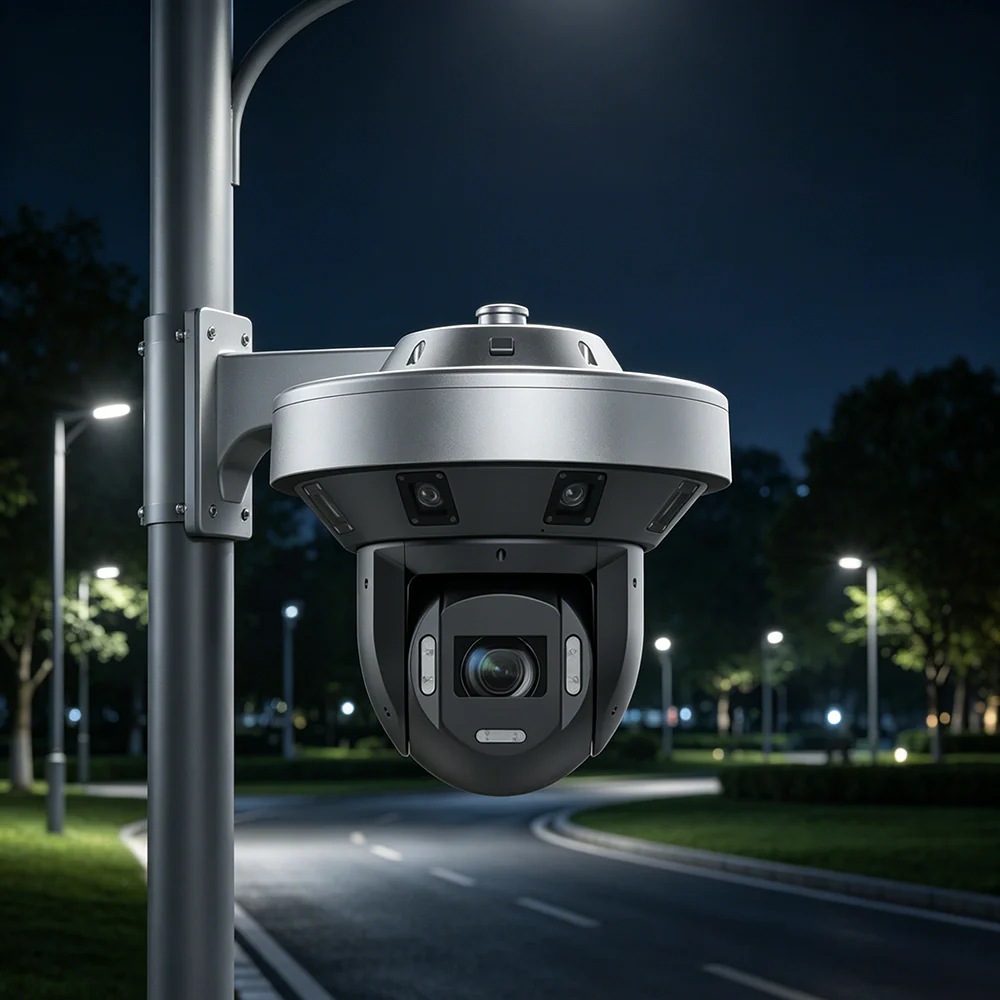

HIK DS-2DP8A845IXG1-LF/864(F0) 64MP 360° Panoramic & PTZ Camera

HIK DS-2DP8A845IXG1-LF/864(F0) 64MP 360° Panoramic & PTZ Camera

HIK DS-2DP8A845IXG1-LF/864(F0) 64MP 360° Panoramic & PTZ Camera

DS-2DP8A845IXG1-LF/864(F0) is a Professional Recorder Network Camera for professional security projects, retail installations, and B2B deployment.

Key Highlights

  • High quality imaging with 64 MP resolution, up to 2 × 8160 × 3616 @30 fps for panoramic channels
  • True 360° coverage with eight F1.0 lenses, no blind spots in the panoramas
  • Excellent low-light performance with DarkFighter 2.0 technology
  • 45 × optical zoom and 16 × digital zoom provide close up views over expansive areas
  • Expansive night view with up to 500 m IR distance
  • With one click on the panoramic channel, the PTZ channel shows the details automatically
  • Continous and stable manual tracking, auto-tracking, and panorama tracking
  • Automatic switch between multiple targets
  • Supports 7 alarm inputs, 2 alarm outputs, 1 audio input, and 1 audio output

    Specification

    Camera

    Image Sensor [Panoramic channel]: 1/1.8" progressive scan CMOS, [PTZ channel]: 1/1.2" progressive scan CMOS
    Max. Resolution 8160 × 3616
    Min. Illumination
    [Panoramic channel] Color: 0.0005 Lux (F1.0, AGC ON), B/W: 0.0001 Lux (F1.0, AGC ON);
    [PTZ channel]: 0.0005 Lux (F1.5, AGC ON), B/W: 0.0001 Lux (F1.5, AGC ON), 0 Lux with IR
    Shutter Speed 1 s to 1/30,000 s
    Day & Night IR cut filter
    Zoom [PTZ channel] 45 × optical, 16 × digital
    Slow Shutter Yes

    Lens

    Focal Length [Panoramic channel] 2 mm, [PTZ channel] 7.1 to 320 mm
    FOV
    [Panoramic channel] Horizontal FOV 360°, vertical FOV 110°
    [PTZ channel] Horizontal FOV 56.6° to 1.8°, vertical FOV 33.7° to 1.0°, diagonal FOV 63.4° to 2.0°
    Focus Auto, semi-auto, manual, rapid focus
    Aperture [Panoramic channel] Max. F1.0, [PTZ channel] Max. F1.5
    Zoom Speed [PTZ channel] Approx. 5.6 s

    Illuminator

    Supplement Light Type Laser
    Supplement Light Range up to 500 m
    Smart Supplement Light Yes

    PTZ

    Movement Range (Pan) 360°
    Movement Range (Tilt) -15° to 90° (auto flip)
    Pan Speed Pan speed: configurable from 0.1° to 500°/s; preset speed: 500°/s
    Tilt Speed Tilt speed: configurable from 0.1° to 350°/s, preset speed 350°/s
    Proportional Pan [Panoramic channel]: no; [PTZ channel]: yes
    Presets 300
    Preset Freezing Yes
    Patrol Scan 8 patrols, up to 32 presets for each patrol
    Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
    Park Action Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
    3D Positioning Yes
    PTZ Status Display Yes
    Scheduled Task Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
    Power-off Memory Yes

    Video

    Main Stream
    [Panoramic channel]
    50Hz: 25fps (32MP: 8160 × 3616 × 2, 5520 × 2400 × 2, 8MP: 4096 × 1800 × 2, 3840 × 1680 × 2, 2720 × 1192 × 2); 60Hz: 30fps (32MP: 8160 × 3616 × 2, 5520 × 2400 × 2, 8MP: 4096 × 1800 × 2, 3840 × 1680 × 2, 2720 × 1192 × 2)
    [PTZ channel]
    50Hz: 25fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 24fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
    Sub-Stream
    [Panoramic channel]
    50Hz: 25fps (1560 × 656 × 2, 704 × 320 × 2, 8MP: 704 × 320 × 2, 512 × 232 × 2);
    60Hz: 30fps (1560 × 656 × 2, 704 × 320 × 2, 8MP: 704 × 320 × 2, 512 × 232 × 2)
    [PTZ channel]
    50Hz: 25fps (704 × 576, 640 × 480, 352 × 288);
    60Hz: 24fps (704 × 480, 640 × 480, 352 × 240)
    Third Stream
    [Panoramic channel]
    No
    [PTZ channel]
    50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);
    60Hz: 24fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
    Video Compression
    Main stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Third stream: H.265/H.264/MJPEG

    Audio

    Audio Compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
    Audio Sampling Rate PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; AAC: 16 kHz, 32 kHz, 48 kHz

    Network

    Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
    Simultaneous Live View Up to 20 channels
    API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
    User/Host Up to 32 users. 3 user levels: administrator, operator, and user
    Security Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
    Network Storage NAS (NFS, SMB/CIFS), ANR
    Client iVMS-4200, HikCentral Pro, Hik-Connect
    Web Browser IE10-11, Chrome 57+, Firefox 52+, Safari 12+


    Image Parameters Switch Yes
    Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
    Day/Night Switch Day, night, auto, scheduled-switch
    Wide Dynamic Range (WDR) [Panoramic channel] no, [PTZ channel] 120 dB
    SNR ≥ 55 dB
    Defog [Panoramic channel]: no; [PTZ channel]: optical defog
    Image Stabilization EIS (Built-in gyroscope to improve EIS performance), OIS
    Image Enhancement BLC, HLC, 3D DNR
    Privacy Mask Programmable polygon privacy masks (8 for panoramic channel, 24 for PTZ channel), mask color or mosaic configurable
    Regional Focus Yes
    Regional Exposure Yes

    Interface

    Ethernet Interface 1 RJ45 10M/100M/1000M self-adaptive Ethernet port
    On-board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
    Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
    Alarm 7 alarm inputs, 2 alarm outputs
    RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
    Reset Yes
    Fiber Optical 1 FC interface, built-in fiber module, 1000M, TX1310/RX1550 nm wavelength, single module fiber, up to 20 km transmission distance

    Event

    Smart Event Line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, intrusion detection
    Alarm Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
    Smart Tracking Manual tracking, auto-tracking, panorama tracking. Support patrol tracking among multiple detection scenes

    Deep Learning Function

    People Density Supports detecting the level of people density in the configured area
    Multi-Target-Type Detection [PTZ channel] Supports simultaneous detection and capture of human body, face and vehicle
    Congestion Alarm Yes

    General

    Power 36 VDC ± 20%, max. 135 W, including max. 12 W for IR; PoE (802.3bt): 42.5 to 57 V, 2.12 A
    Dimension Ø427.6 mm × 425.9 mm (Ø16.8" × 16.7")
    Weight 14.6 kg
    Material ADC12
    Operating Condition -40 °C to 70 °C (-40 °F to 158 °F). Humidity 90% or less (non-condensing)
    Wiper Yes
    Demist Yes

    Approval

    Safety CB (IEC 62368-1: 2014 + A11), CE-LVD (EN 62368-1: 2014/A11: 2017)
    Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
    Protection IP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10
    $3,500.00

    Original: $10,000.00

    -65%
